IDProjectCategoryView StatusDate SubmittedLast Update
0001531CaseTalk ModelerDiagramspublic2017-11-22 12:092022-01-10 20:32
ReporterStephan Volkmann Assigned ToBCP Software
PrioritynormalSeveritycrashReproducibilitysometimes
Status closedResolutionfixed
PlatformIntelOSWindowsOS Version7
Product Version8.27
Fixed in Version8.28
Summary0001531: Casetalk Crash when hiding points in IGD
DescriptionThe Modeler crashed (error + no answer in windows) when I tried to hide a waypoint in the connection line between two Types.

Steps To Reproduce1. Open project, repository and IGD
2. Use the function "Insert points in connecting lines"

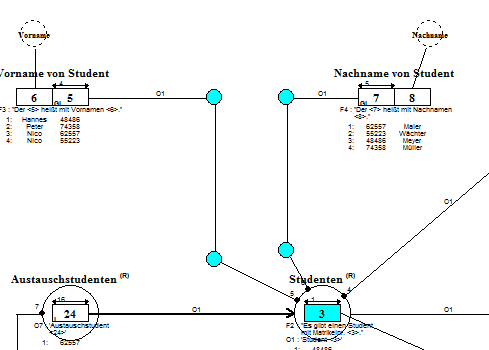

3. Make a few Points in a connecting line (picture1)
4. Save the igd, project and repository

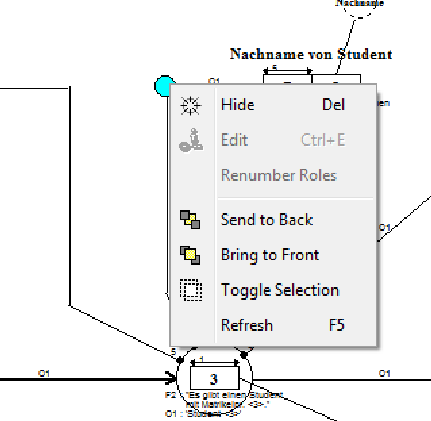

5. Use the menu to delete/hide a point in the line (picture2) !Here! The Del-Key-Shortcut doesn´t do anything for me...
now:

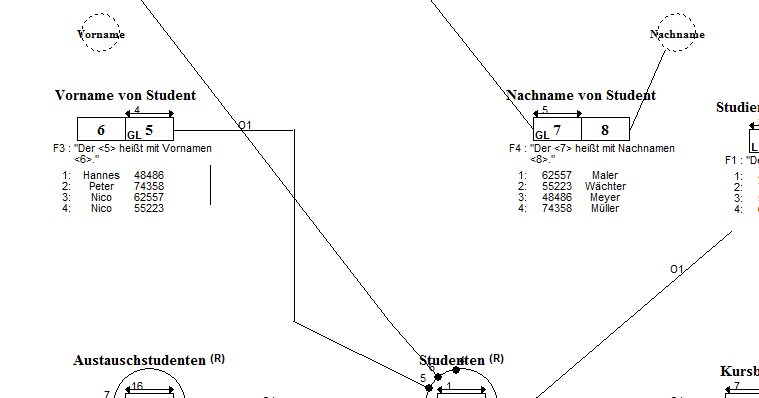

Sometimes only a part of the line is deleted where the point was. The rest of the line has no end then. (see picture3)

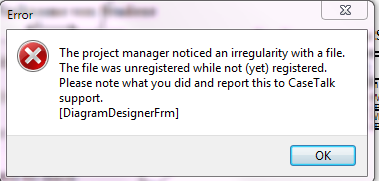

When trying to save the project or even leave the project without saving anything Casetalk gives an error message (see picture4) and then doesnt react anymore and i had to close it via the task manager.
Additional InformationEducational Version 8.27
TagsNo tags attached.
CaseTalk Edition

Activities

Stephan Volkmann

Stephan Volkmann

2017-11-22 12:09

reporter

BCP Software

BCP Software

2022-01-10 20:32

administrator   ~0002256

Closing automatically, stayed too long in resolved state. Feel free to re-open with additional information if you think the issue is not resolved.

Issue History

Date Modified Username Field Change
2017-11-22 12:09 Stephan Volkmann New Issue
2017-11-22 12:09 Stephan Volkmann File Added: someWaypoints.PNG
2017-11-22 12:09 Stephan Volkmann File Added: menuToHidePoint.PNG
2017-11-22 12:09 Stephan Volkmann File Added: crashedIGD.PNG
2017-11-22 12:09 Stephan Volkmann File Added: CasetalkERROR.PNG
2017-11-24 09:41 BCP Software Assigned To => BCP Software
2017-11-24 09:41 BCP Software Status new => resolved
2017-11-24 09:41 BCP Software Resolution open => fixed
2017-11-24 09:41 BCP Software Fixed in Version => 8.28
2022-01-10 20:32 BCP Software Note Added: 0002256
2022-01-10 20:32 BCP Software Status resolved => closed
