View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0001891 | CaseTalk Modeler | Diagrams | public | 2018-10-02 20:43 | 2022-01-10 20:32 |
Reporter | Marco Wobben | Assigned To | Marco Wobben | ||
Priority | normal | Severity | feature | Reproducibility | have not tried |
Status | closed | Resolution | fixed | ||
Target Version | Future | Fixed in Version | 9.4.1 | ||
Summary | 0001891: Show generalized OT differently | ||||
Description | Generalized Object Types have various expressions which may or may not cover certain roles. Therefor the ellipse around the Object Type should indicate this partial usage of the Object Type itself. | ||||
Tags | No tags attached. | ||||
Attached Files | |||||
CaseTalk Edition | unknown | ||||
related to | 0001893 | assigned | Marco Wobben | Generalized Object Types request |
Some argue the generalized object types should only be expressed by the hyponyms, therefor show no roles inside it. | |

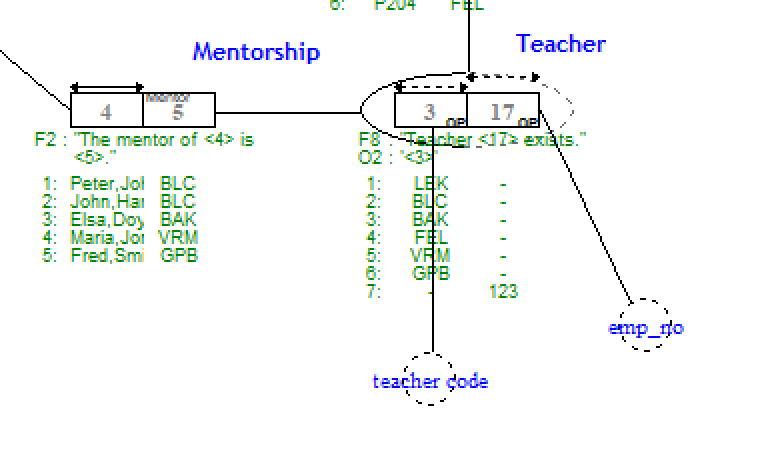

Diagram Option added to show Object Types with partial or absent substitutions can be drawn different. | |
Closing automatically, stayed too long in resolved state. Feel free to re-open with additional information if you think the issue is not resolved. | |
Date Modified | Username | Field | Change |
---|---|---|---|
2018-10-02 20:43 | Marco Wobben | New Issue | |
2018-10-02 20:43 | Marco Wobben | Status | new => assigned |
2018-10-02 20:43 | Marco Wobben | Assigned To | => Marco Wobben |
2018-10-02 20:43 | Marco Wobben | Note Added: 0001310 | |
2018-10-03 10:23 | Marco Wobben | Status | assigned => resolved |
2018-10-03 10:23 | Marco Wobben | Resolution | open => fixed |
2018-10-03 10:23 | Marco Wobben | Fixed in Version | => 9.4.1 |
2018-10-03 10:23 | Marco Wobben | Note Added: 0001311 | |
2018-10-04 14:34 | Marco Wobben | File Added: 06.png | |
2018-10-04 14:37 | Marco Wobben | Relationship added | related to 0001893 |
2018-10-11 12:18 | Marco Wobben | Severity | tweak => feature |
2022-01-10 20:32 | Marco Wobben | Note Added: 0002280 | |
2022-01-10 20:32 | Marco Wobben | Status | resolved => closed |
