View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0003784CaseTalk ModelerGeneration (SQL, XML, etc)public2023-01-09 09:132023-01-09 10:16
ReporterMarco Wobben Assigned ToMarco Wobben
PrioritynormalSeveritymajorReproducibilityhave not tried
Status resolvedResolutionfixed
PlatformIntelOSWindowsOS Version11
Target Version12.6Fixed in Version12.6
Summary0003784: UML lacks property

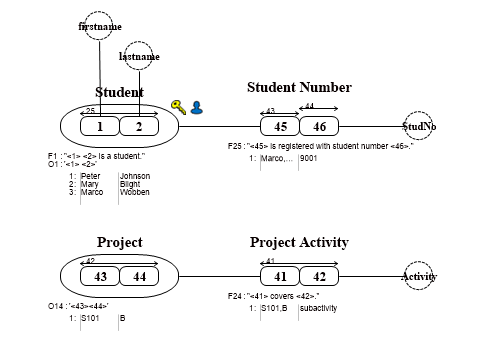

DescriptionBinary facts with two separate UCs, where one role is played by the OT, and the other role is played by a LT, is not showing up as a property of the class.
TagsNo tags attached.
CaseTalk Editionunknown

Relationships

related to 0003785 resolvedMarco Wobben Binary Fact Type should be a Satellite

Activities

Marco Wobben

Marco Wobben

2023-01-09 09:31

administrator   ~0004731

Neither of the fact types show up as an uml attribute
Marco Wobben

Marco Wobben

2023-01-09 09:33

administrator   ~0004732

Marco Wobben

Marco Wobben

2023-01-09 09:34

administrator   ~0004733

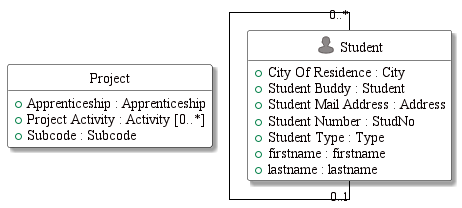

Fixed, by adding more transformation criteria. The UML Diagram shows both as property.

Issue History

Date Modified Username Field Change
2023-01-09 09:13 Marco Wobben New Issue
2023-01-09 09:13 Marco Wobben Status new => assigned
2023-01-09 09:13 Marco Wobben Assigned To => Marco Wobben
2023-01-09 09:31 Marco Wobben Note Added: 0004731
2023-01-09 09:31 Marco Wobben File Added: missing_uml_attributes.png
2023-01-09 09:33 Marco Wobben Note Added: 0004732
2023-01-09 09:33 Marco Wobben File Added: missing_uml_attributes_fixed.png
2023-01-09 09:34 Marco Wobben Status assigned => resolved
2023-01-09 09:34 Marco Wobben Resolution open => fixed
2023-01-09 09:34 Marco Wobben Fixed in Version => 12.6
2023-01-09 09:34 Marco Wobben Note Added: 0004733
2023-01-09 10:16 Marco Wobben Relationship added related to 0003785
