0005187: Population referential integrity error

ID	Project	Category	View Status	Date Submitted	Last Update

0005187	CaseTalk Modeler	Transformation (GLR)	public	2025-08-28 13:15	2025-08-28 18:20

Reporter	Marco Wobben	Assigned To	Marco Wobben
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	resolved	Resolution	fixed
Platform	Intel	OS	Windows	OS Version	11
Target Version	14.3.1	Fixed in Version	14.3.1

Summary	0005187: Population referential integrity error
Description	When performing a GLR on a model which violates the N-Rule, it can lead to referential integrity issues in the population. The result is that CaseTalk checking for consistency, fails to the final steps in the transformation. The Logical Model for instance will not be generated.
Tags	No tags attached.
Attached Files	image.png (17,436 bytes) image.png (17,436 bytes)

CaseTalk Edition	unknown

Date Modified	Username	Field	Change
2025-08-28 13:15	Marco Wobben	New Issue
2025-08-28 13:15	Marco Wobben	Status	new => assigned
2025-08-28 13:15	Marco Wobben	Assigned To	=> Marco Wobben
2025-08-28 13:15	Marco Wobben	File Added: image.png
2025-08-28 13:17	Marco Wobben	Note Added: 0005619
2025-08-28 18:20	Marco Wobben	Status	assigned => resolved
2025-08-28 18:20	Marco Wobben	Resolution	open => fixed
2025-08-28 18:20	Marco Wobben	Fixed in Version	=> 14.3.1

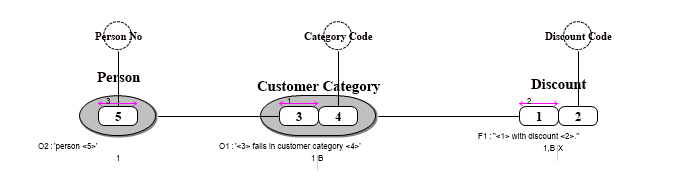

Marco Wobben 2025-08-28 13:17 administrator ~0005619	Problem: The problem lies in the step where role 3 is being grouped, the population under Customer Category may get renumbered, resulting in the population under Discount having an incorrect reference. Workaround: The workaround is to clear the population in the transformation settings.
